Mytek Brooklyn Bridge Streamer - Black

Mytek Brooklyn BRIDGE

Brooklyn Bridge is identical to Brooklyn DAC+ in terms of audio circuits and performance, but has the addition of a built-in Network Streamer.

BROOKLYN BRIDGE = Streamer + DAC + preamp

All functions of the Award winning Mytek Brooklyn DAC+:

• Most versatile DAC in the world
• Best price / quality performance in the world
• MQA ® hardware decoder
• Hires PCM 32 bit / 352 Khz & DSD256
• Excellent phono preamp
• Analog & digital discrete volume control
• Excellent headphone amplifier

Plus extra streaming options included:

• Wifi & ethernet connections
• Extra USB connections for external hard drives
• Stream Tidal MQA & Qobuz
• Roon Endpoint functionality

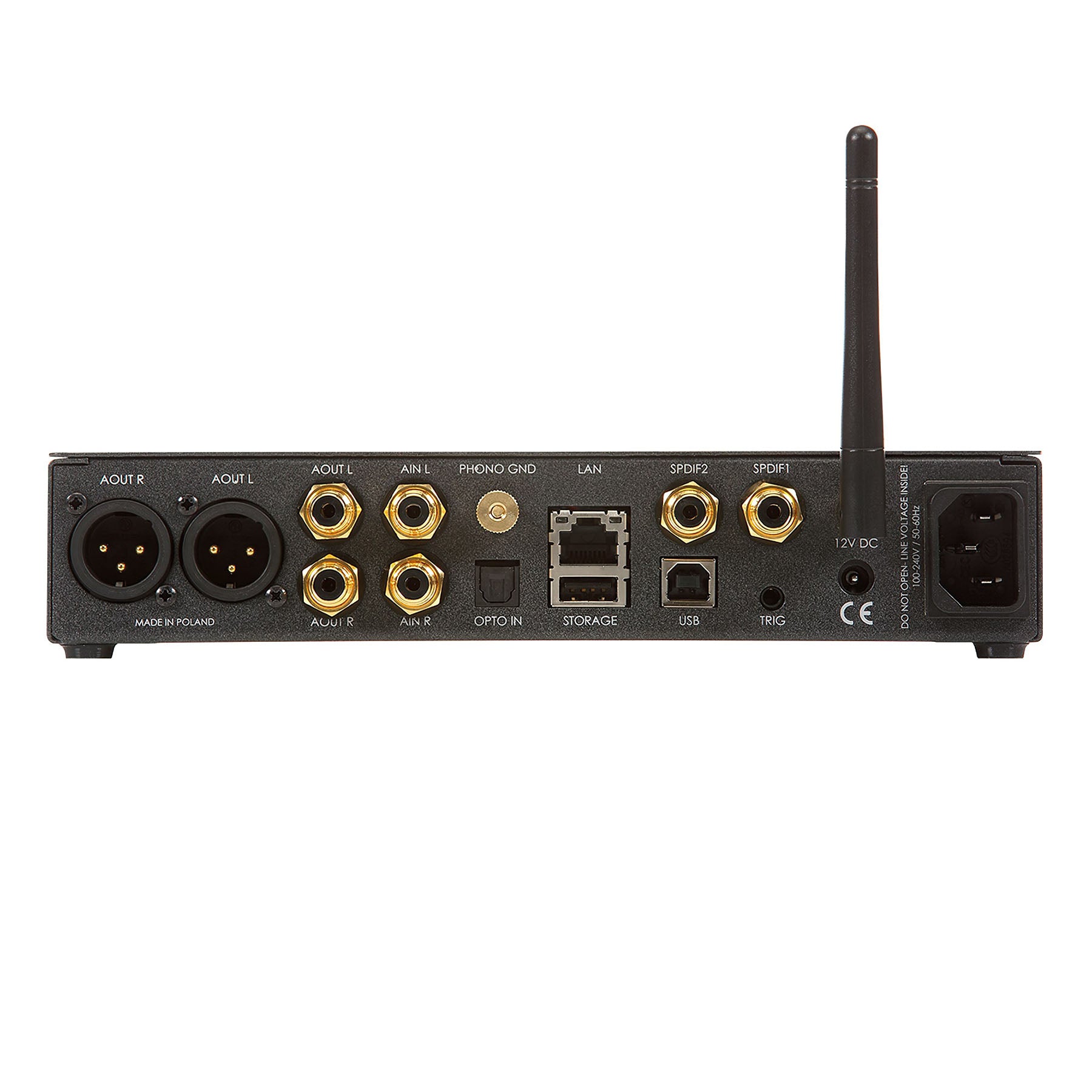

AES/EBU digital input is replaced with an ethernet network connector, a WiFi antena and a USB port for external music hard drive.

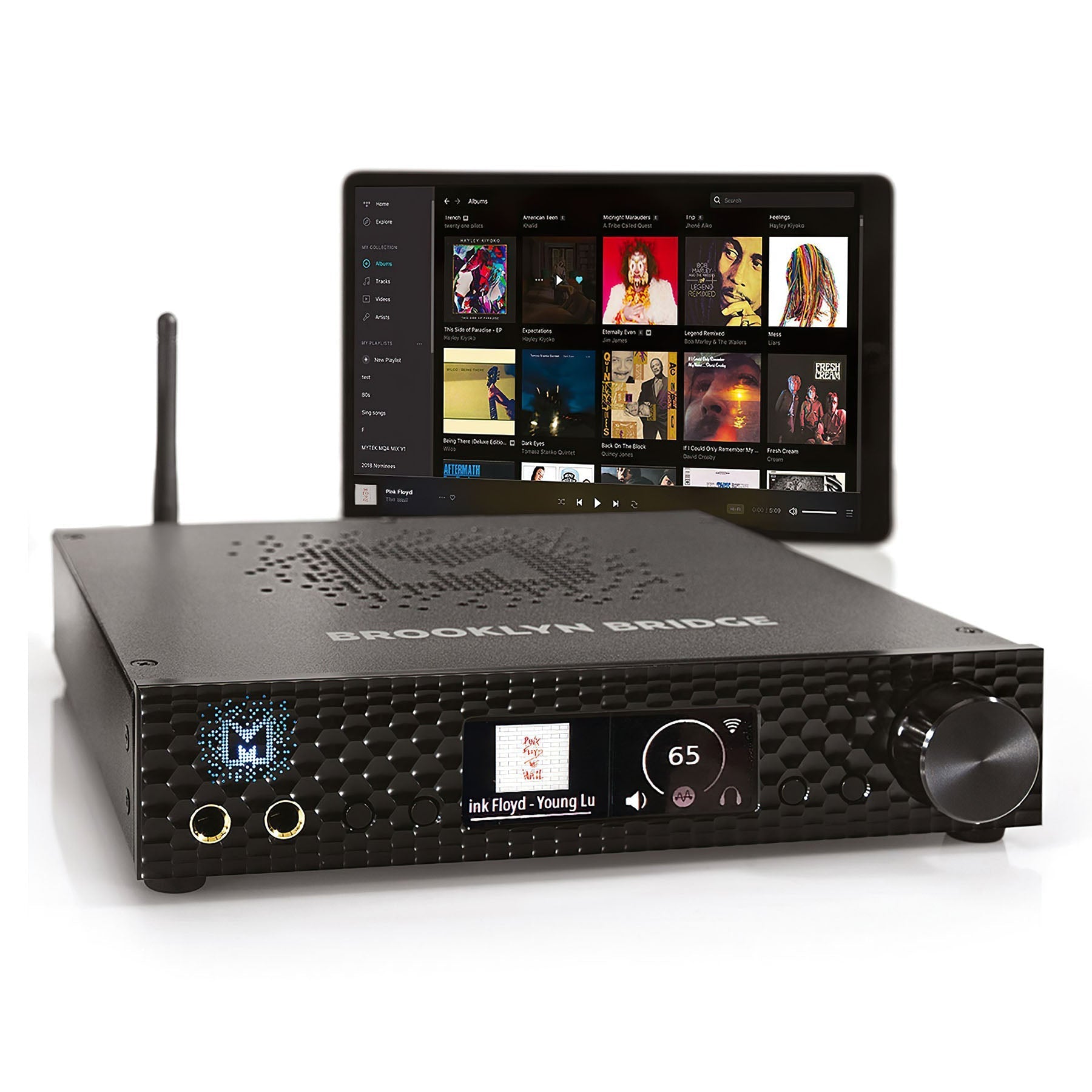

Just add a tablet (ipad or android) for complete music system to stream Tidal MQA, Qobuz Hi-Res or other streaming services or play local files connected to Brooklyn Bridge USB port.

Roon requires additional Roon Core.

Like in the Brooklyn DAC+ there is line and phono analog preamplifier and a reference headphone amplifier.

Price / Quality unbeatable

The Mytek Brooklyn Bridge is the only reasonably priced high-end DAC with a MQA hardware decoder & streaming capabilities. This Streamer / Preamp / DAC lets you hear the full original resolution of Tidal Masters. Plus: it also plays Native DSD up to Quad DSD256.

Most versatile component in the world

Designed in New York.

The Brooklyn DAC+ was launched at RMAF 2017 in October 2017 and is now succeeded by the Mytek Brooklyn Bridge.

The Brooklyn Bridge is a reference USB2 DAC.

Furthermore it is also a line stage. And a phono preamplifier. And an analog preamplifier. And a reference headphone amplifier. And a streamer.

This makes the Mytek Brooklyn Bridge the most versatile component in the world.

It integrates high resolution digital audio together with vinyl playback for reference listening on headphones and speakers.

All integrated functions are of premium grade.

The phono preamplifier inside this DAC is of the highest quality. The same applies for the headphone amplifier.

Both these components challenge dedicated units costing thousands of dollars.

High-end DAC capabilities:

• Sabre 9028 Pro chipset
• High grade, highly transparent and less noisy analog attenuator circuit.
• High grade analog input performance
• Very transparant Phono Stage
• Headphone Amp sound with fine detail & definition
• Dual mono analog path

Specifications

CONVERSION:

Up to 384k, 32bit PCM, native DSD

Up to DSD256, DXD, 130dB Dynamic Range

MQA HI-RES DECODER:

Built-in certified hardware

MQA™ decoder

DIGITAL INPUTS:

USB2 Class2 (OSX, Linux driverless, all formats)

2x S/PDIF (PCM up to 192k, up to DSD64 DOP)

Toslink/ADAT (PCM up to 192k, up to DSD64 DOP)

Ethernet

NEW in Mytek Brooklyn Bridge

Wifi

New in Mytek Brooklyn Bridge

USB for external hard drive

New in Mytek Brooklyn Bridge

CLOCK:

“Mytek Femtoclock Generator™” 0.82ps internal jitter

Wordclock Input and Output (allows stacking multiple units for multichannel operation, includes mch DSD)

ANALOG OUTPUTS:

RCA,

balanced XLR,

Simultaneous use possible

50 Ohm impedance

HEADPHONE OUTPUTS:

Reference High Current, High transient Headphone Amp

500mA, 6 Watts

Dual headphone jacks

Designed to drive hard to drive headphones.

BUILT-IN ATTENUATOR:

Choice of 1dB step analog attenuator

Separate for main out and headphones

1dB step digital 32 bit attenuator

Purist relay bypass.

BUILT-IN ANALOG PREAMP:

Choice between:

Line level input

Phono MM or MC input

AUDIO INTERFACE FUNCTION:

All digital inputs can be routed into computer via USB2.

Allows connection of external digital sources such as CD Players and digitizing ADCs.

REMOTE:

Included

Universal remote capable

FIRMWARE:

Upgradable via USB Control panel

WORLDWIDE POWER SUPPLY

OPTIONAL DC/BATTERY POWER INPUT: 12VDC

DIMENSIONS:

WxDxH = 8.5 x8.5 x 1.74 inch = 216 x 216 x 44 mm

WEIGHT:

+- 4 lbs, 2 kg

WARRANTY:

2 years
