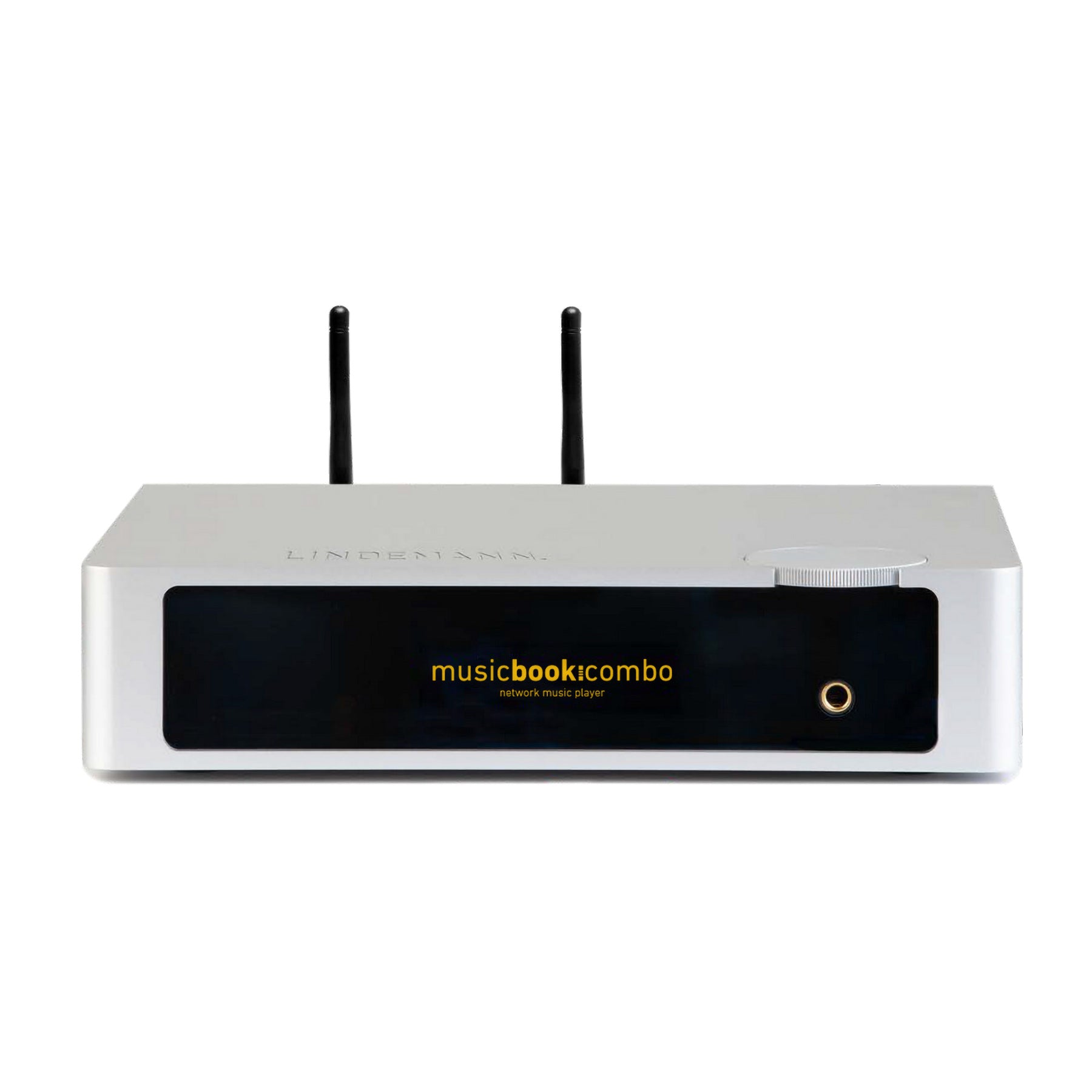

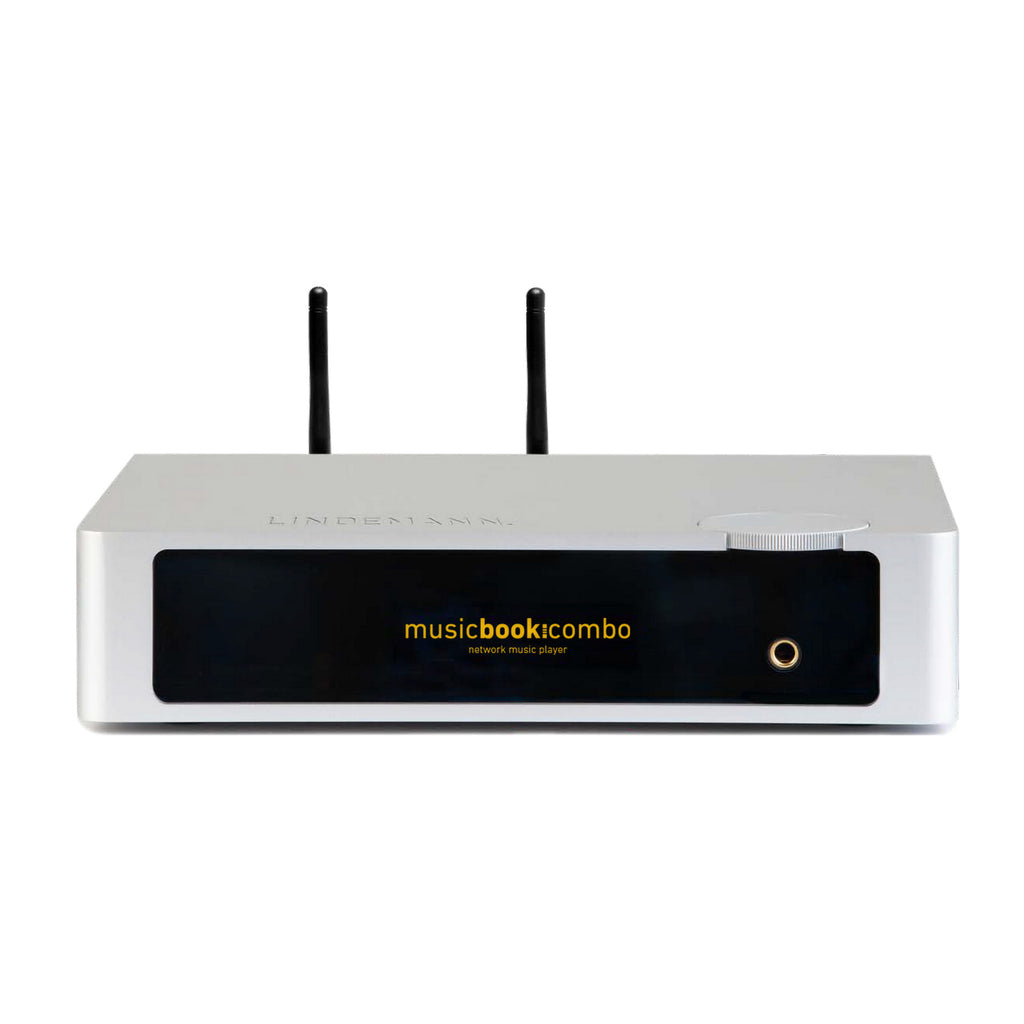

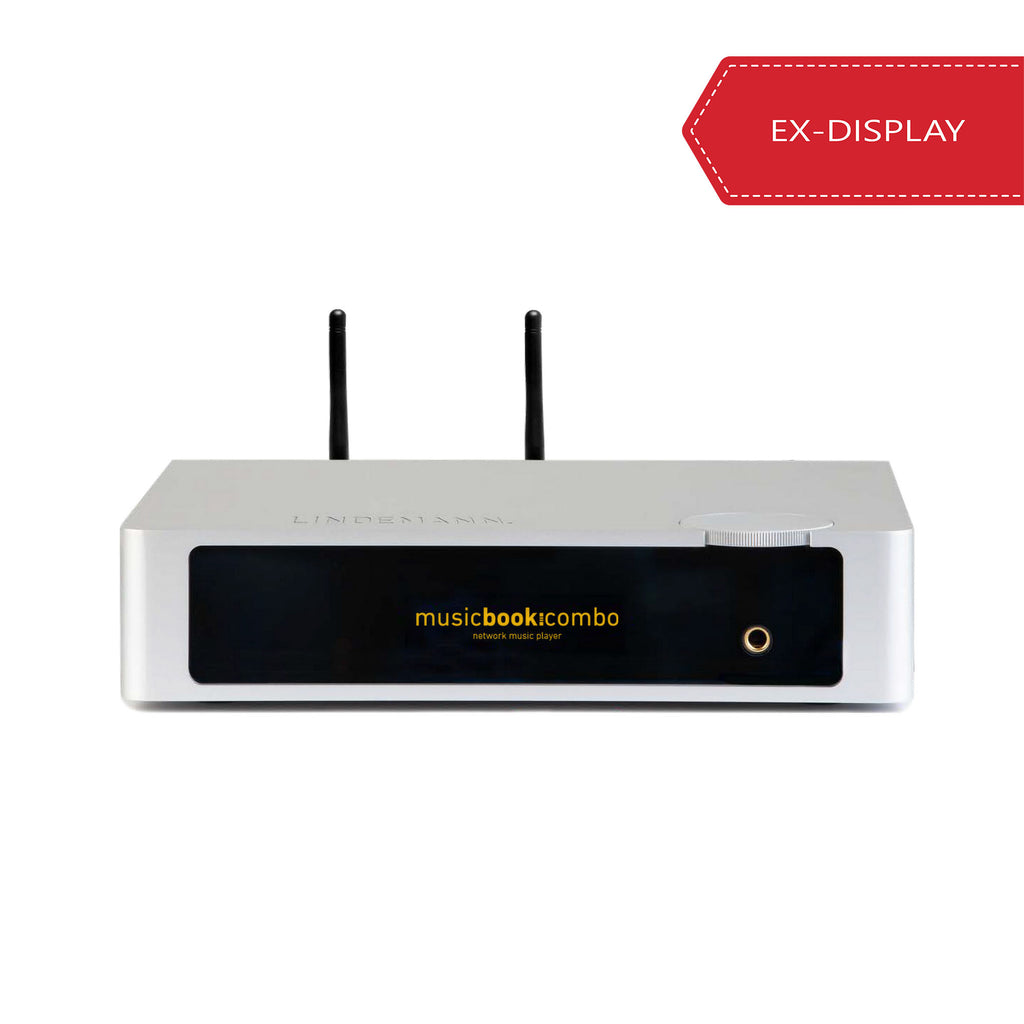

Lindemann Musicbook Combo [Ex-display]

Musicbook COMBO

WHY A MUSICBOOK COMBO?

Because it’s the first all-in-one music player from LINDEMANN? Or the logical continuation of the highly successful Musicbook series? Either way: the COMBO is fully equipped, features a unique design, and carries truly audiophile DNA. It's the essence of 30 years of experience in amplifier and digital source development – a true all-rounder and the new heart of your hi-fi system for years to come!

THE HEART OF YOUR SYSTEM

The Musicbook COMBO combines our award-winning Musicbook SOURCE II with the power amp technology of the Musicbook POWER II. With a wide range of features and connection options, a dream comes true: simply connect your speakers – and enjoy music in its purest form!

Whether streaming services, music servers, CDs or LPs – nearly every source is supported and easily controlled via the LINDEMANN app. And headphone lovers will also get their money’s worth. To top it all off, the COMBO includes an excellent MM phono input for your turntable!

EVERYTHING UNDER CONTROL

The LINDEMANN App: intuitive, smart, and visually appealing. With dedicated modes for smartphones and tablets, available for iOS and Android. Light and dark themes included.

Browse millions of songs via TIDAL, Qobuz, Deezer, Spotify, Highresaudio, and more – all in exceptional sound quality, up to 24-bit / 384 kHz Studio Master resolution.

Learn more about the LINDEMANN App and our streaming platform here!

EXCEPTIONAL ENGINEERING

The circuit design of the Musicbook COMBO is fully optimized for outstanding sound quality. At its heart is one of the finest DAC chips available – the AK4493 from Japanese digital specialist AKM.

The integrated phono MM preamp offers wonderfully musical playback and is identical to the highly acclaimed Limetree PHONO II. The headphone amplifier also delivers top-tier sound quality with ample output power, even for demanding headphones. The power amplifier is technically identical to the Musicbook POWER II, offering control and audiophile performance that far exceed its price class.

SOUND, SOUND, SOUND

The Musicbook COMBO also uses the re-sampling process known from the Musicbook SOURCE II, in which all digital input signals are converted to high-resolution 1-bit signals (DSD256) via re-sampling.

With 256 times the resolution of a CD, the conversion to analog is carried out purely through analog filtering – without digital filters or signal processors.

The result of this “deconstruction” of the DAC is a completely transparent musical signal: maximum resolution, brilliant tone colors, unlimited dynamics, and a uniquely “real” atmosphere reminiscent of the best analog playback!

WHY A MUSICBOOK COMBO?

Because it’s the first all-in-one music player from LINDEMANN? Or the logical continuation of the highly successful Musicbook series? Either way: the COMBO is fully equipped, features a unique design, and carries truly audiophile DNA. It's the essence of 30 years of experience in amplifier and digital source development – a true all-rounder and the new heart of your hi-fi system for years to come!

THE HEART OF YOUR SYSTEM

The Musicbook COMBO combines our award-winning Musicbook SOURCE II with the power amp technology of the Musicbook POWER II. With a wide range of features and connection options, a dream comes true: simply connect your speakers – and enjoy music in its purest form!

Whether streaming services, music servers, CDs or LPs – nearly every source is supported and easily controlled via the LINDEMANN app. And headphone lovers will also get their money’s worth. To top it all off, the COMBO includes an excellent MM phono input for your turntable!

EVERYTHING UNDER CONTROL

The LINDEMANN App: intuitive, smart, and visually appealing. With dedicated modes for smartphones and tablets, available for iOS and Android. Light and dark themes included.

Browse millions of songs via TIDAL, Qobuz, Deezer, Spotify, Highresaudio, and more – all in exceptional sound quality, up to 24-bit / 384 kHz Studio Master resolution.

Learn more about the LINDEMANN App and our streaming platform here!

EXCEPTIONAL ENGINEERING

The circuit design of the Musicbook COMBO is fully optimized for outstanding sound quality. At its heart is one of the finest DAC chips available – the AK4493 from Japanese digital specialist AKM.

The integrated phono MM preamp offers wonderfully musical playback and is identical to the highly acclaimed Limetree PHONO II. The headphone amplifier also delivers top-tier sound quality with ample output power, even for demanding headphones. The power amplifier is technically identical to the Musicbook POWER II, offering control and audiophile performance that far exceed its price class.

SOUND, SOUND, SOUND

The Musicbook COMBO also uses the re-sampling process known from the Musicbook SOURCE II, in which all digital input signals are converted to high-resolution 1-bit signals (DSD256) via re-sampling.

With 256 times the resolution of a CD, the conversion to analog is carried out purely through analog filtering – without digital filters or signal processors.

The result of this “deconstruction” of the DAC is a completely transparent musical signal: maximum resolution, brilliant tone colors, unlimited dynamics, and a uniquely “real” atmosphere reminiscent of the best analog playback!

FEATURES

Remote Control

• The IR remote control included with the COMBO not only allows you to adjust the volume but also to navigate playlists or CDs.

Roon Ready

• The Musicbook COMBO is Roon Ready and integrates seamlessly into the Roon ecosystem. Enjoy premium sound quality and a user-friendly music management system.
• Roon + Lindemann Website

Streaming Services

• Direct access from the LINDEMANN App to the following streaming services: Qobuz, TIDAL, Deezer, Spotify, and HighResAudio.

TIDAL & Qobuz Connect

• The Musicbook COMBO supports both “TIDAL Connect” and “Qobuz Connect.” This feature lets you stream your music directly from the cloud using the respective app — easily and in the highest quality.
• For more information, please visit www.tidal.com/connect and www.qobuz.com/connect.

Spotify Connect

• The Musicbook COMBO supports "Spotify Connect", allowing Spotify users to stream audio directly from the Spotify app to a LINDEMANN network player.
• More at www.spotify.com/connect.

Internet Radio & Podcasts

• The COMBO gives you access to around 100,000 internet radio stations and podcasts – and counting!
• Station logos and details such as track, artist, resolution etc. are seamlessly displayed.
• Any station can easily be added to your personal “Favorites” menu.

MM Phono Stage

• The MM phono preamp in the Musicbook COMBO is technically identical to our Limetree PHONO and delivers outstanding sound quality from vinyl – with great fun factor included.

External CD Drive

• The COMBO supports USB connection of external CD-ROM drives, easily transforming it into a high-end CD player – with minimal effort or expense!

Headphone Amplifier

• The headphone amp of the Musicbook COMBO features a powerful output stage capable of driving headphones from 16 to 200 ohms.
• Both technically and sonically, the built-in amp is of the highest quality.

DSD Resampling

• Technologically, the Musicbook COMBO leads the way: all digital signals can be converted to DSD 256 – a data format highly regarded by audiophiles worldwide. This innovative approach even gives standard CD-quality recordings a truly exceptional sound.

LINDEMANN App

• The LINDEMANN App is freely available for Android and iOS, for both smartphones and tablets.
• It enables smooth and intuitive playback of all major streaming services, music servers, and USB storage devices.

Download the LINDEMANN App here:

Power Amplifier

• The built-in power amplifier – based on the highly acclaimed Musicbook POWER II – delivers power and control as well as transparency and tonal richness. Just connect the right speakers and enjoy sound quality far beyond its class!

SPECIFICATIONS

Measurement conditions: 22 °C, 230 V mains voltage,
Audio Precision AP2722
Mains connection: 90 – 240 V, 50 – 60 Hz
Power consumption: 0.5 W stand-by, 16 W operation, 160 W max. Dimensions (W x H x D): 280 x 220 x 63 mm (11 x 8.7 x 2.5 in.)
Weight: 3 kg (6.61 lbs)

D/A converter

Resolution: 768 kHz/32 bit and DSD 512
Dynamic range: >125 dB
THD & Noise: <0.001 % (@ 0 dB FS)
Master-Clock: Ultra low jitter MEMS Femto Clock
Re-Sampling: with 180 dB dynamics and 32 bit resolution, bit-perfect or DSD
Re-sampling jitter damping: >60 dB
Converter architecture: two AK4493 DACs in dual differential mono mode, AK4137 re-sampler

Network player

Ethernet: 100 Mbit/s
WLAN: Dual-band 802.11a/b/g/n/ac, WPS support
Bluetooth: 4.2, A2DP
USB: High-speed host interface for harddisks, USB sticks,
CD ROM drives, max. output current 1.5 A
Supported codecs: WAV, FLAC, AIFF, ALAC, MP3, AAC, Ogg Vorbis, WMA, DSD
UPnP and DLNA support
PCM resolution: 44.1 kHz up to 384 kHz, 24bit (WLAN up to 192 kHz)
DSD resolution: DSD 64 up to DSD 256 (WLAN up to DSD 128) Gapless playback
Streaming services: TIDAL Connect, Qobuz, Deezer, HighResAudio, Spotify Connect
Internet radio and podcast
roon ready

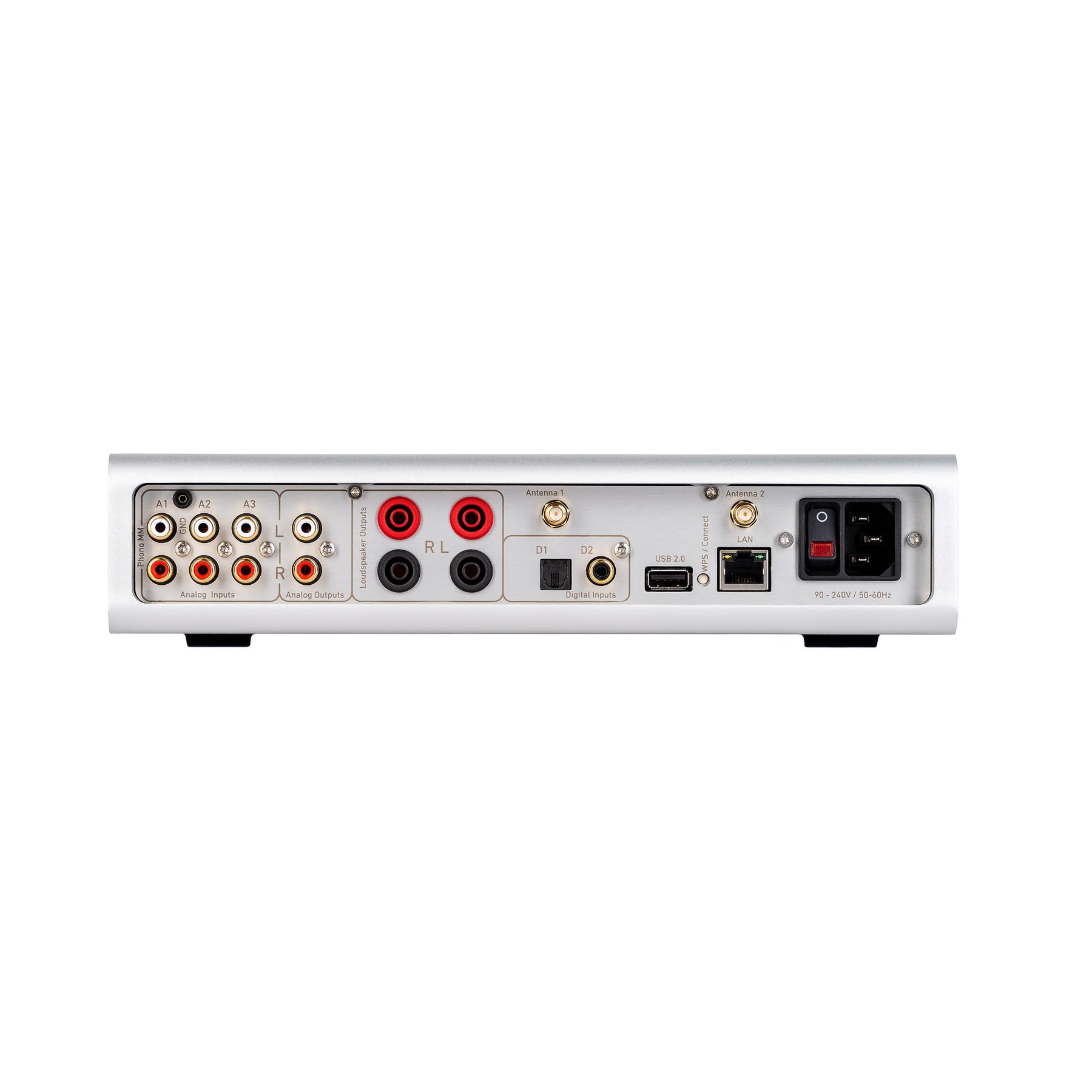

Analog Preamp

Inputs: two analog line inputs (RCA) with 50 kOhms of input impedance. Max. input voltage 2.5 V. MM input for connecting a turntable.
Connection values MM: 47 kOhms / 150 pF / 40 dB gain.
Output: line level output (RCA). Output impedance: 100 ohms. Max. output voltage: 1 V.
Volume level control range: 0 to 80 dB in 1 dB steps Balance control: + / - 6 dB in 1 dB steps
Frequency response: 2 – 200 kHz (-3 dB)
THD & Noise: < 0,001 % @ 3 V output

Power amplifier

Poweroutput: 2 x 130 W @ 4 ohms, 2 x 70 W @ 8 ohms.
THD&Noise: < 0.03 % @ 10 W into 4 ohms
Dampening factor: > 500.

Headphone amp

Headphone connector: 6.35 mm (1/4“) jack socket
Headphone gain: 0 dB / 12 dB switchable
Recommended headphone impedance: 16 - 200 ohms
Damping factor of headphone output: >100
